SHIP DESIGN
Phi-Mechaniseas successfully completes each naval ship design project by following the design spiral process in order to reach the customer’s specifications in a cost-effective manner. Naval Architecture and Production Information disciplines are applied in order to reach the desired result in all ship design phases.

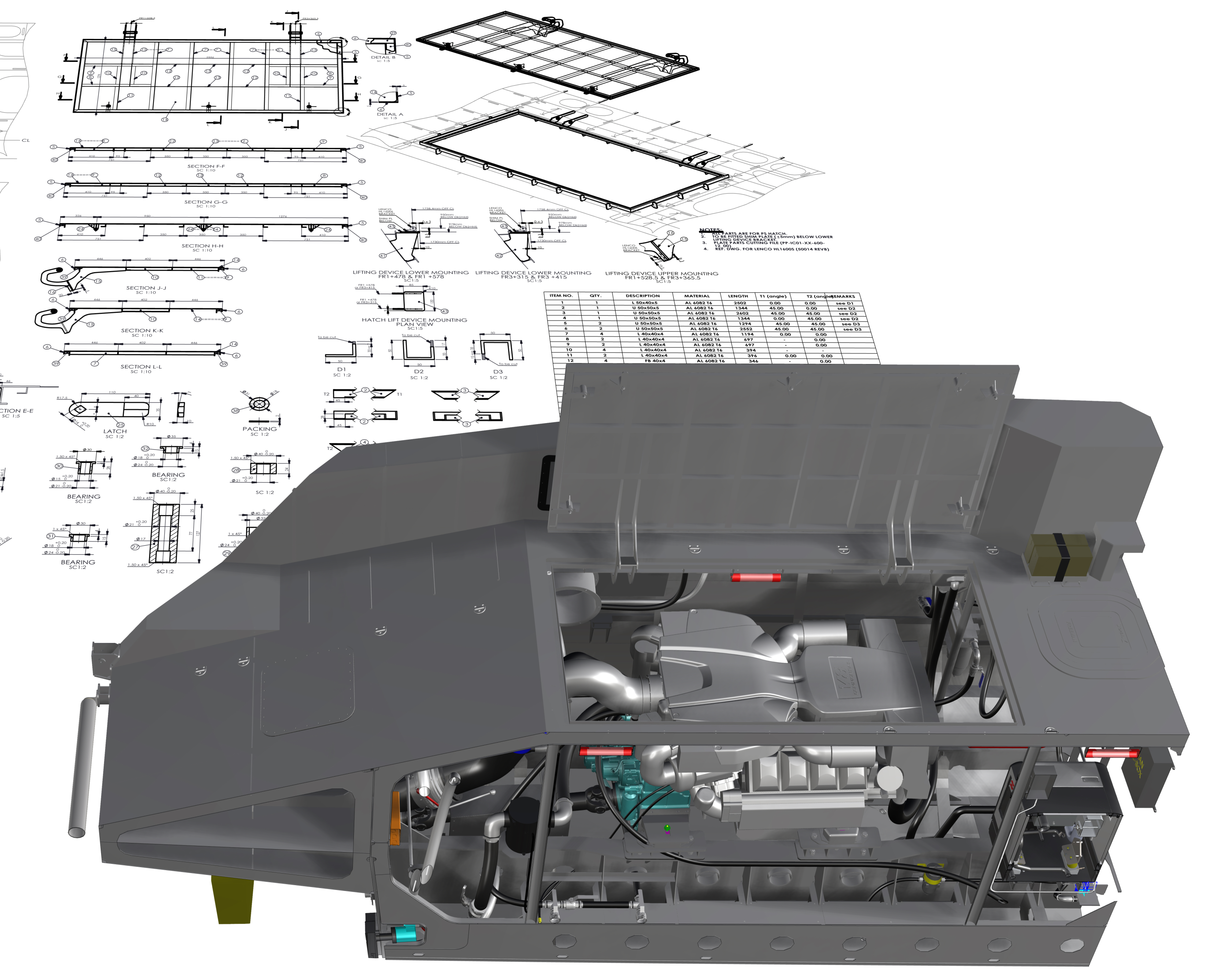

A complete 3D Model is created during design phases, which benefits the productivity of asset construction, ensures quality of the craft and provides Integrated Life Support (ILS).
SHIP DESIGN PHASES
- Conceptual Design
- Preliminary Design
- Contract Design
- Functional Design
- Detail Design
- Production Design
NAVAL ARCHITECTURE
- Hull Form Generation
- Resistance & Propulsion
- Hydrostatics
- Hydrodynamics
- Intact & Damage stability
- Structure & Scantlings Calculations
- Finite Element Analysis (FEA)
- Classification Compliance
- Inclining Experiment
- Weight Analysis & Control
- Propeller Studies
- Ship Model Tank Tests
PRODUCTION INFORMATION
- Engineering Drawings for Production
- 3D Structural Arrangements for Hull & Outfitting
- Cutting Tapes & Sketches for Plates & Profiles
- Material Lists (BOM)
- Assembly Information & Drawings
- Bending Templates for Plates
- Bending Templates for Profiles
- Jigs
- Material Specification
