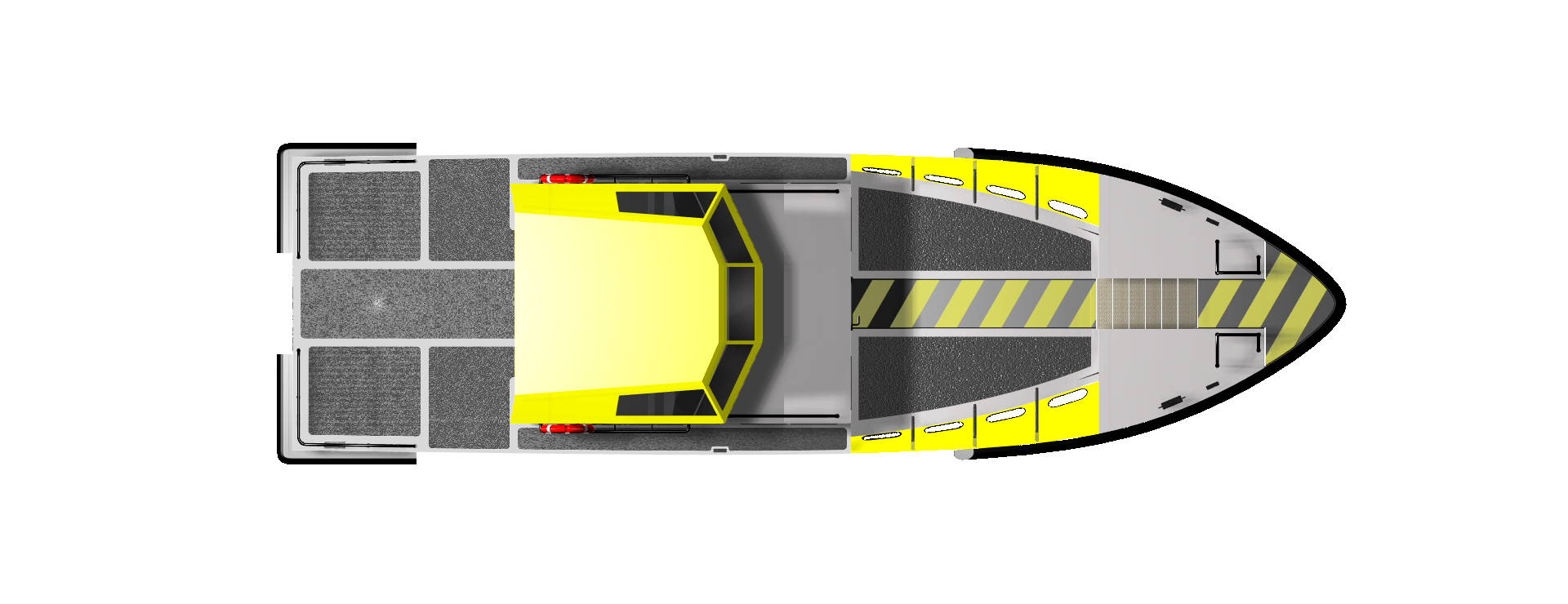

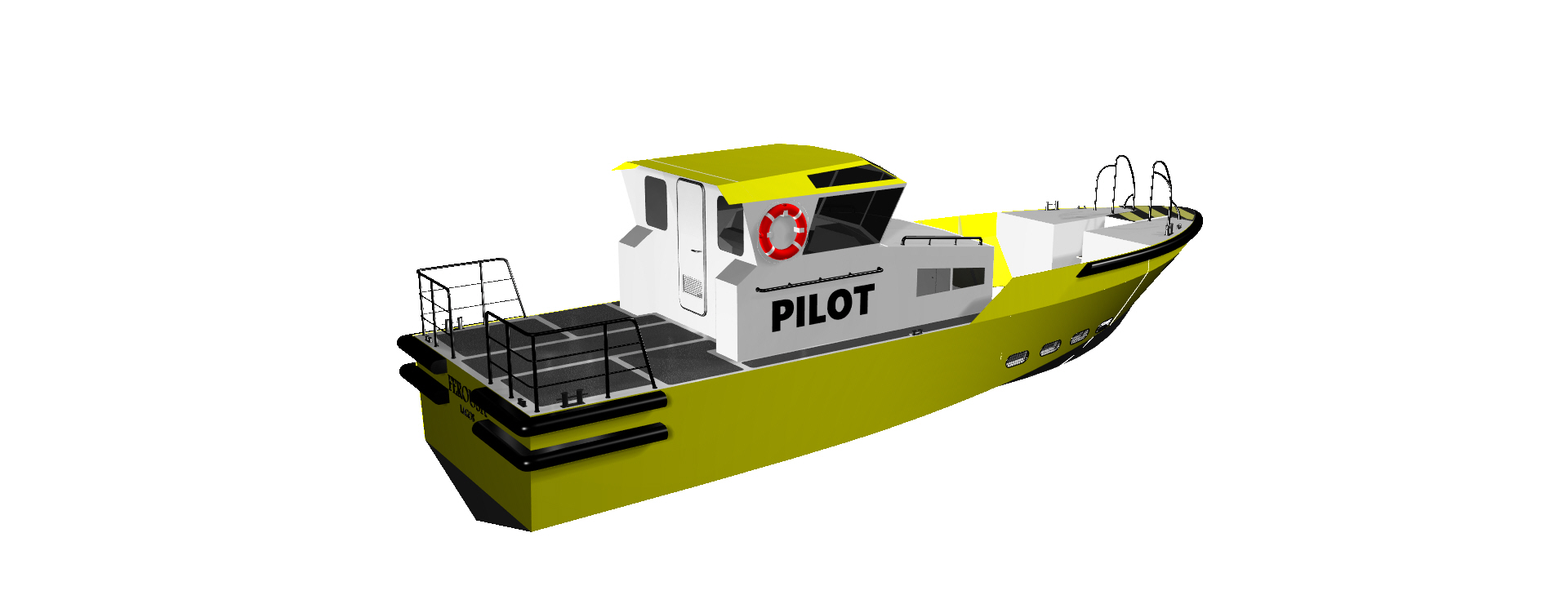

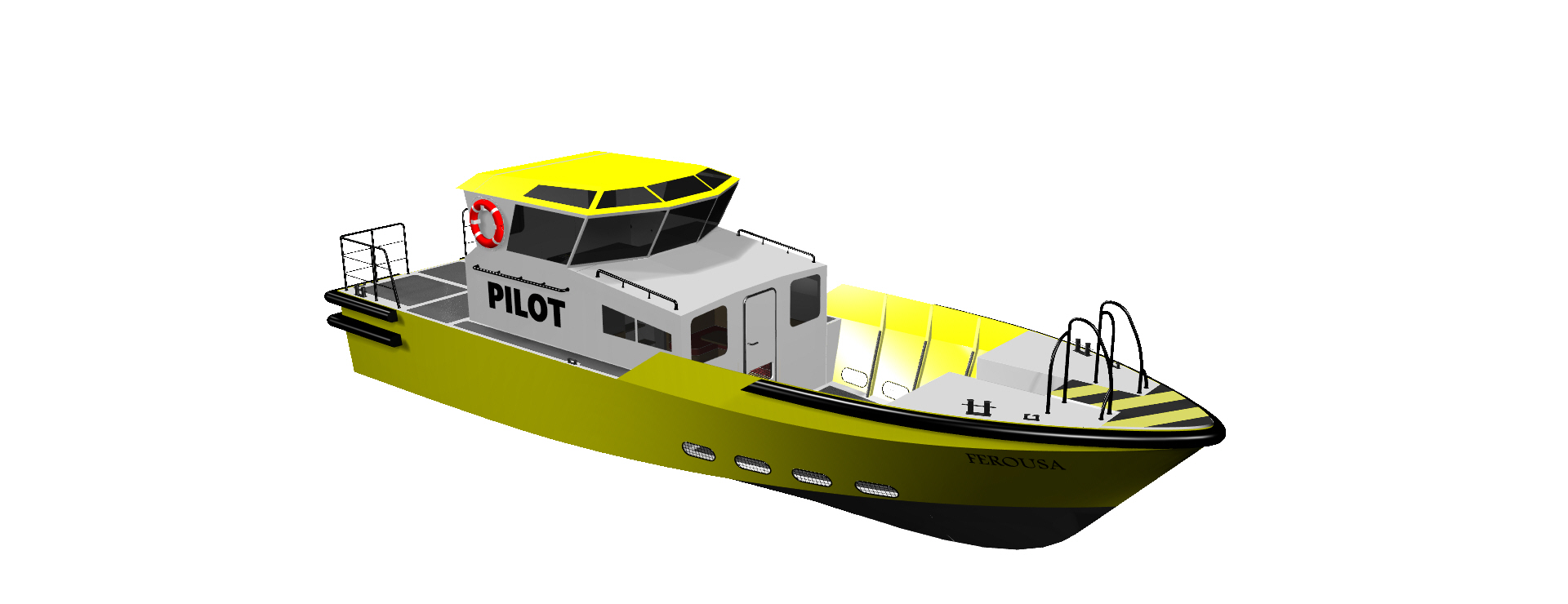

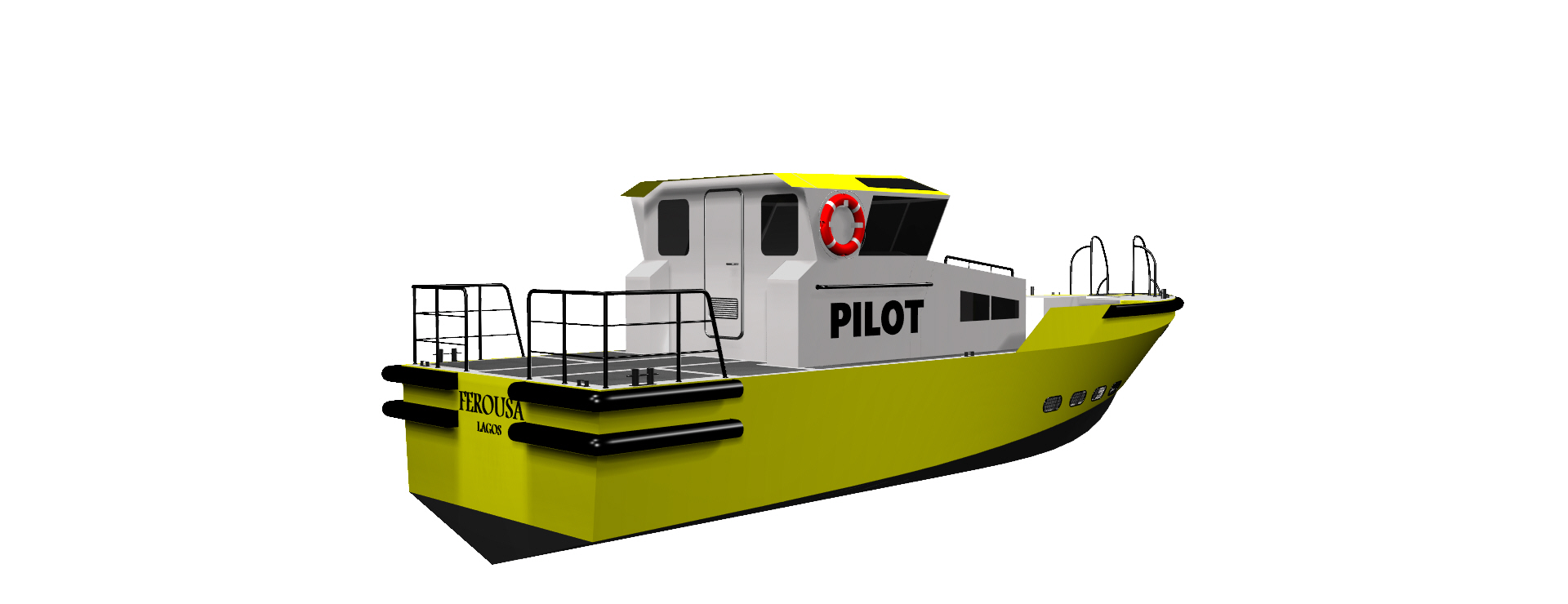

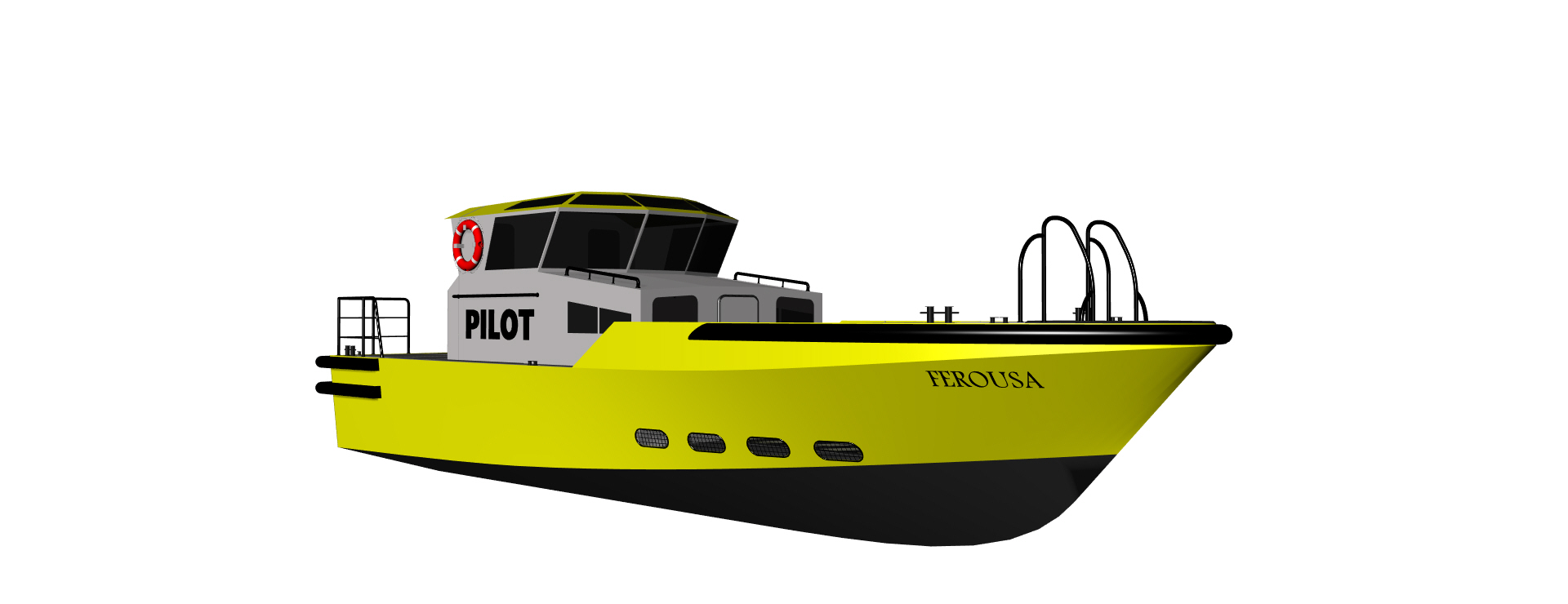

PILOT 1380 is an aluminum pilot boat designed to carry 8 passengers and 750 kg of cargo in a protected cargo area of 7.2 m2. The boat is designed for maximum propulsion efficiency in order to minimize fuel consumption. The boat is driven with a conventional propulsion system (shafts & propellers) so that maximum reliability can be achieved.
MAIN PARTICULARS
Length O.A. : 13.80 m
Beam O.A. : 4.20 m
Draught : 0.73 m
Depth : 1.95 m
Displacement (max) : 14 tonnes
Engine Power : 2x 206 kW
Speed (max) : 20 kn
Crew : 2 persons
Passengers : 8 persons
Passengers Area(open deck) : 8.5 m2
Cargo : 750 kg
Cargo Area : 7.2 m2
Material : Aluminium
Classification : BV (hull)
