GENERAL
Hull Material : Aluminium 5083 and 6082
Basic Functions : Special Operations Craft
Classification : RINA Fast Patrol Vessel
Survivability : 1 Compartment Damage
PROPULSION SYSTEM

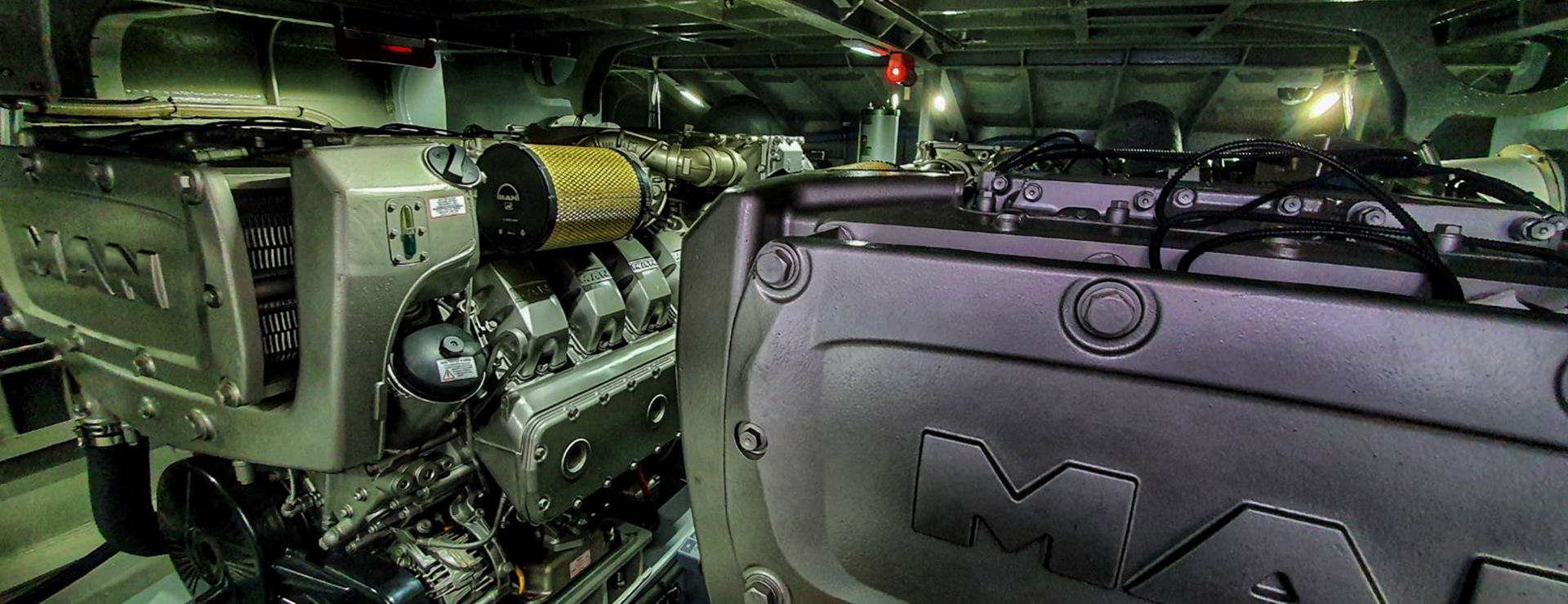

Main Engines : 2 x MAN V8-1200 (or 1300)
Total Power : 2x 882 kW
Gearbox : 2x ZF 2000 A
Surface Drives : 2x QSD 236
DIMENSIONS

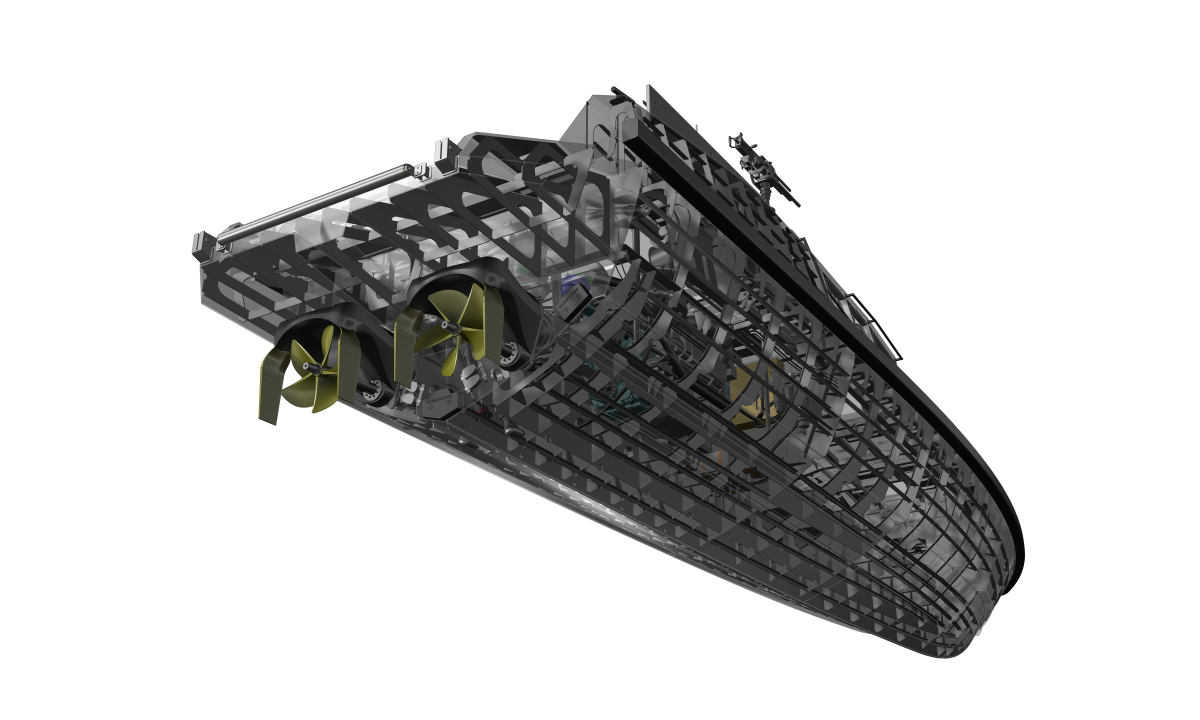

Hull Type : 26o deep-V
Length O.A. : 17.93 m
Beam O.A. : 4.50 m
Draught : 0.95 m
Displacement : 22.5 tonnes

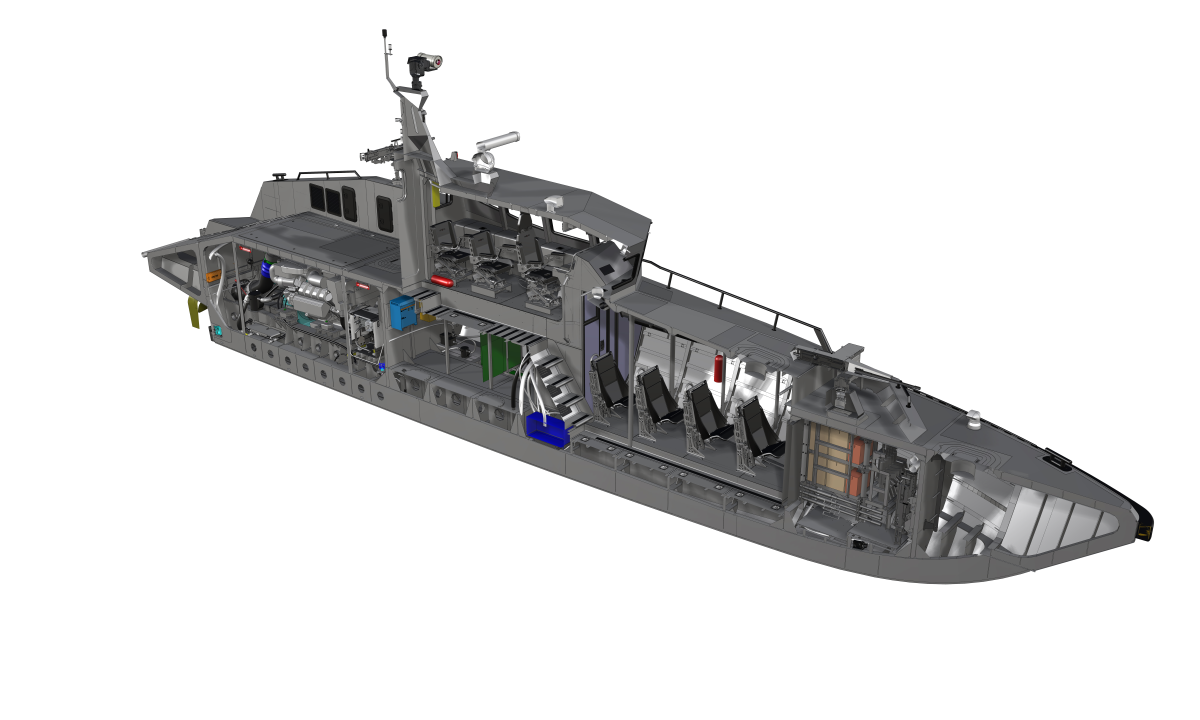

DECK LAYOUT
Anchor/Windlass : 1x
Fender : 1x

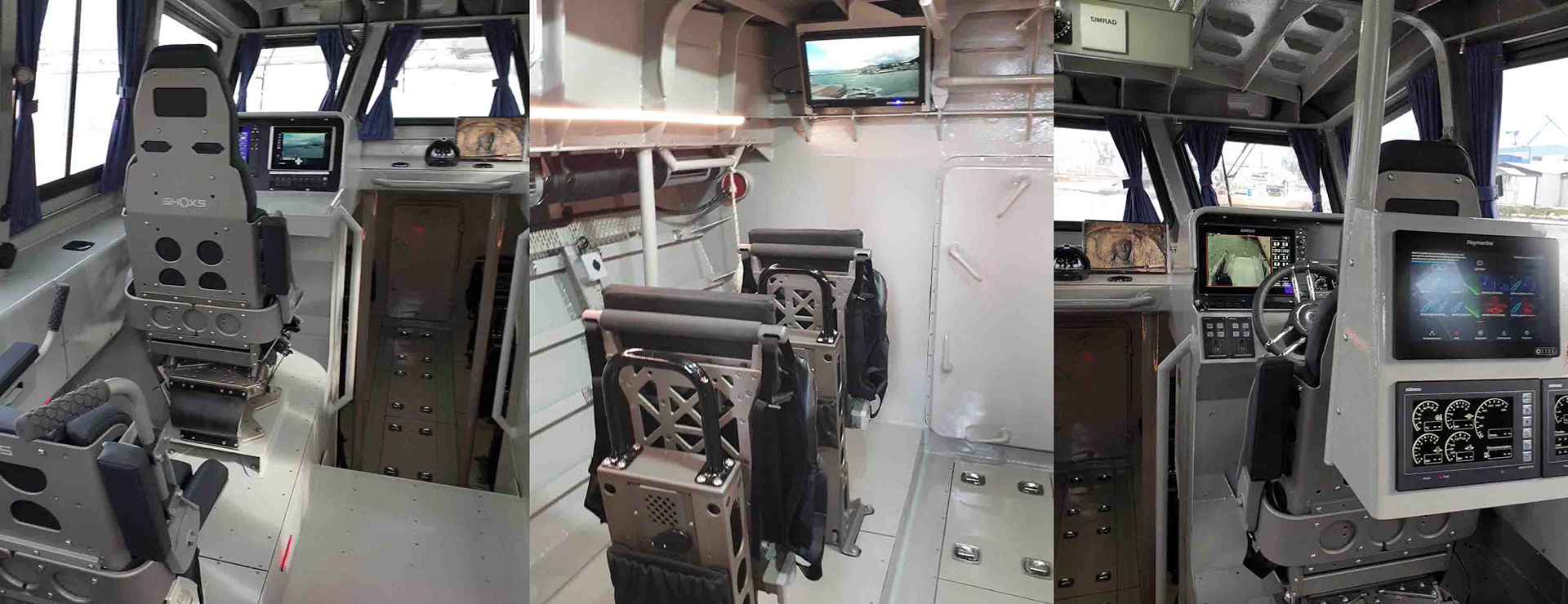

Seats : 14x Shoxs

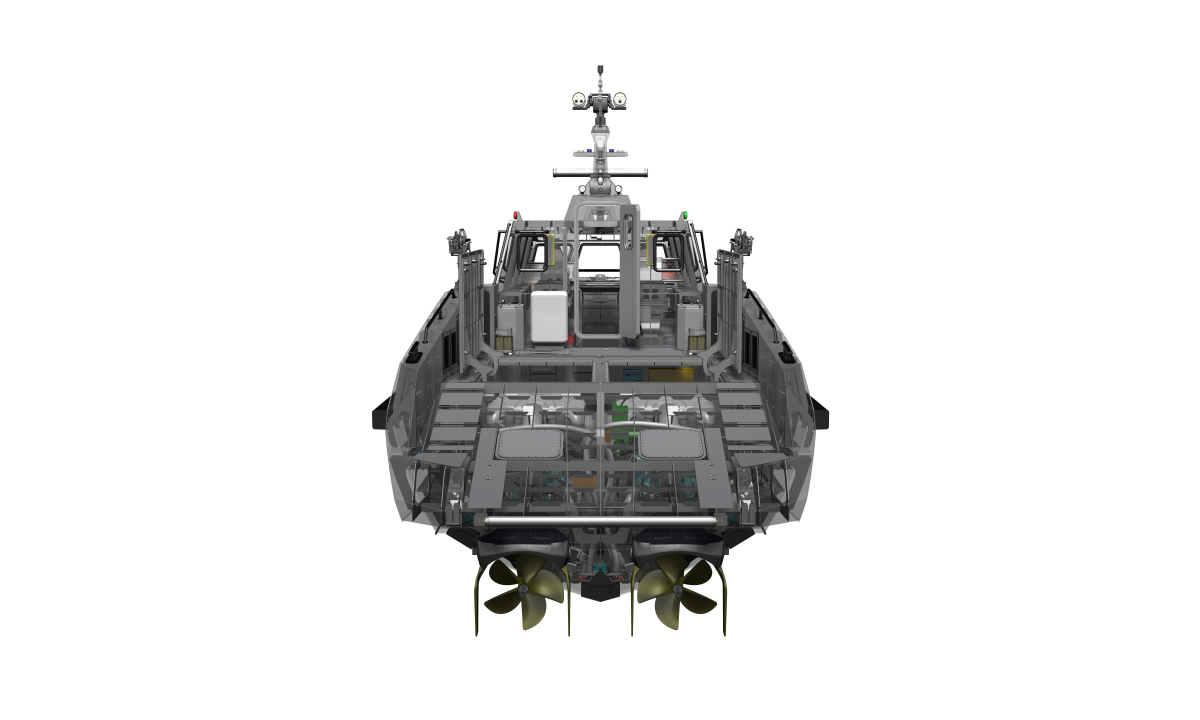

Stern Ramp : 1x 4.70m RIB
Workstations : 3x //option for 6x
WC : 1x
TANK CAPACITIES
Fuel : 2700 lt
Fresh Water : 120 lt
Endurance : 350 n.miles
AUXILIARY SYSTEMS
Engine Room Fans : 2x
Trim Interceptors : 3x Humphree
Fire/Bilge Pumps : 1/6x Electrically
Operated
Fire Extinguisher : 4x Bonpet, 3x CO2
A/C : 2x 16000 BTU
Refrigerator : 1x
SOF PERSONNEL
Crew : 3 persons
Seals : 11 persons
ELECTRICAL EQUIPMENT
Generator : 1x M-GV 15 Whisper Power
Networks : 12V/24V DC, 220 AC

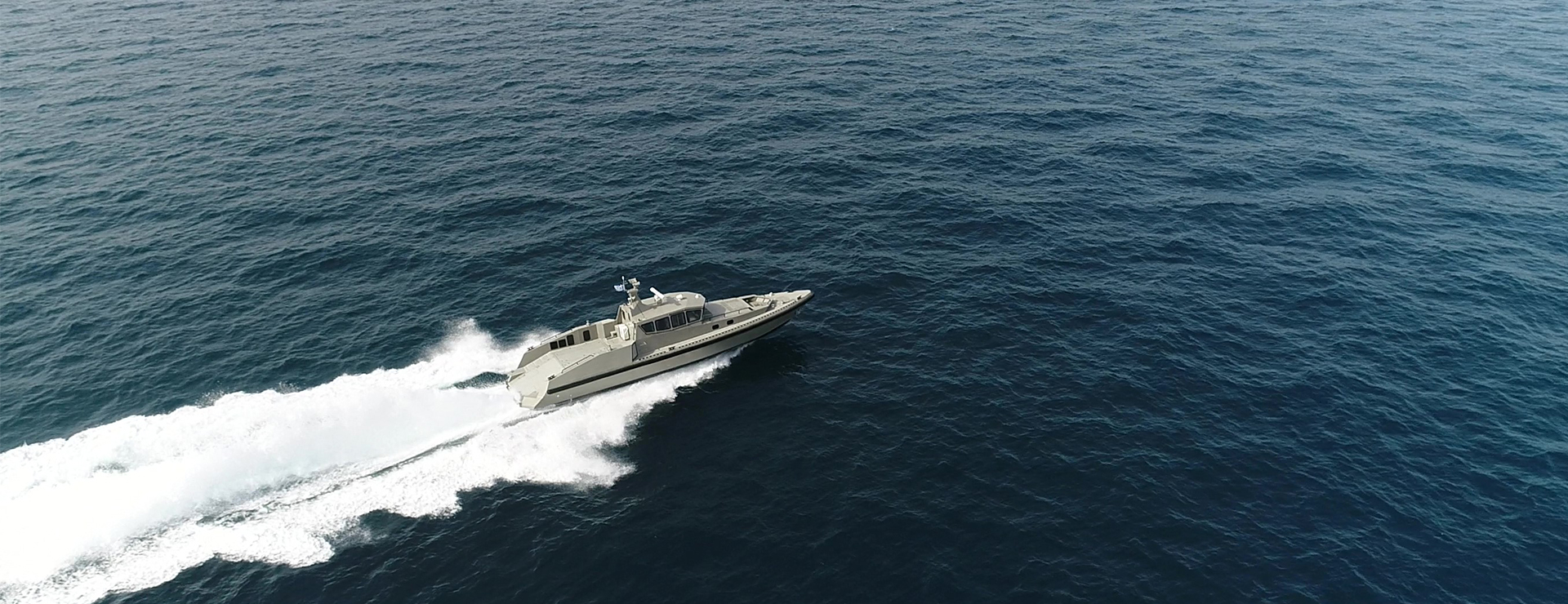

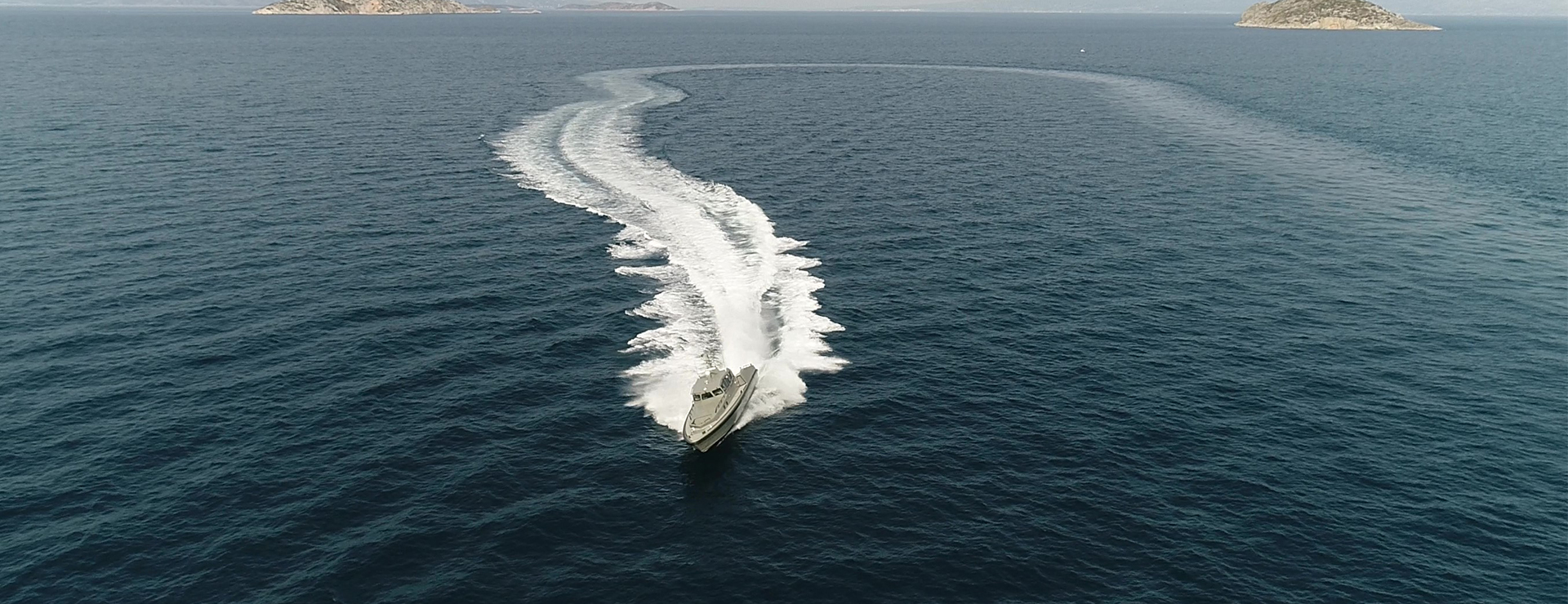

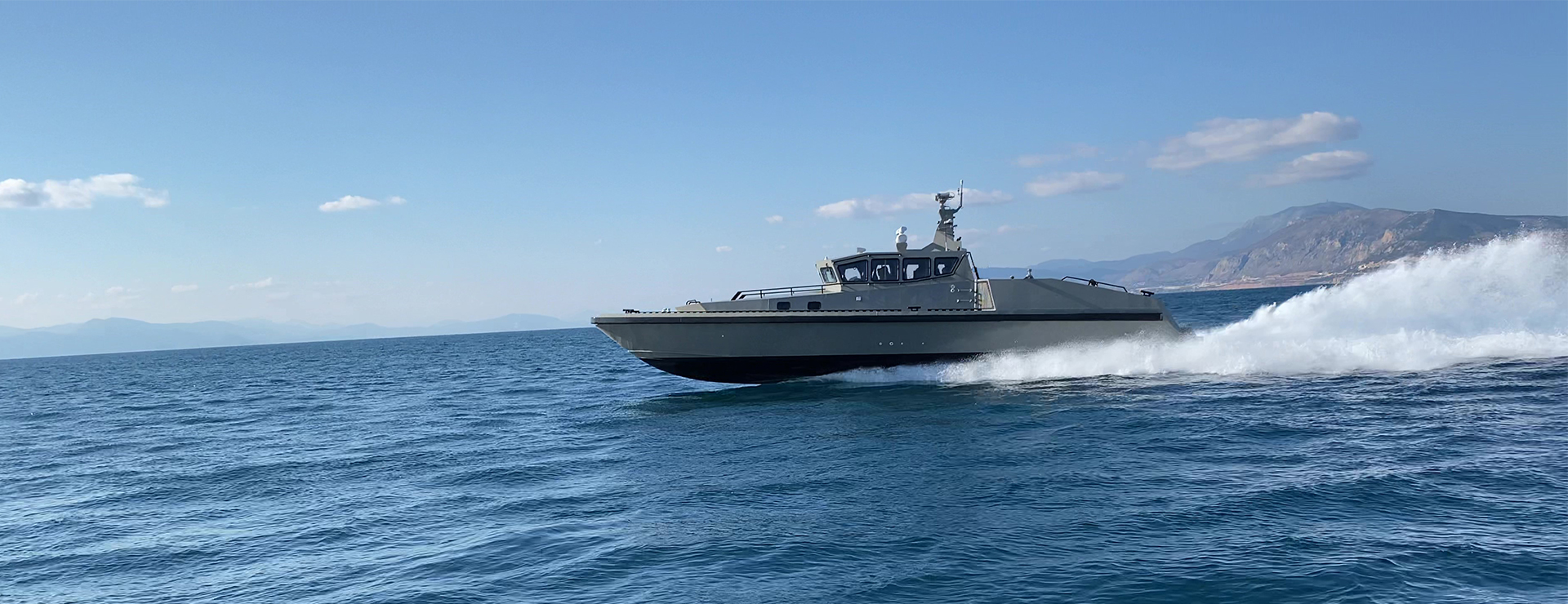

PERFORMANCE (TRIALS)
Speed (Hald Load) : 52.5 kn
Speed Cruising : 38 kn

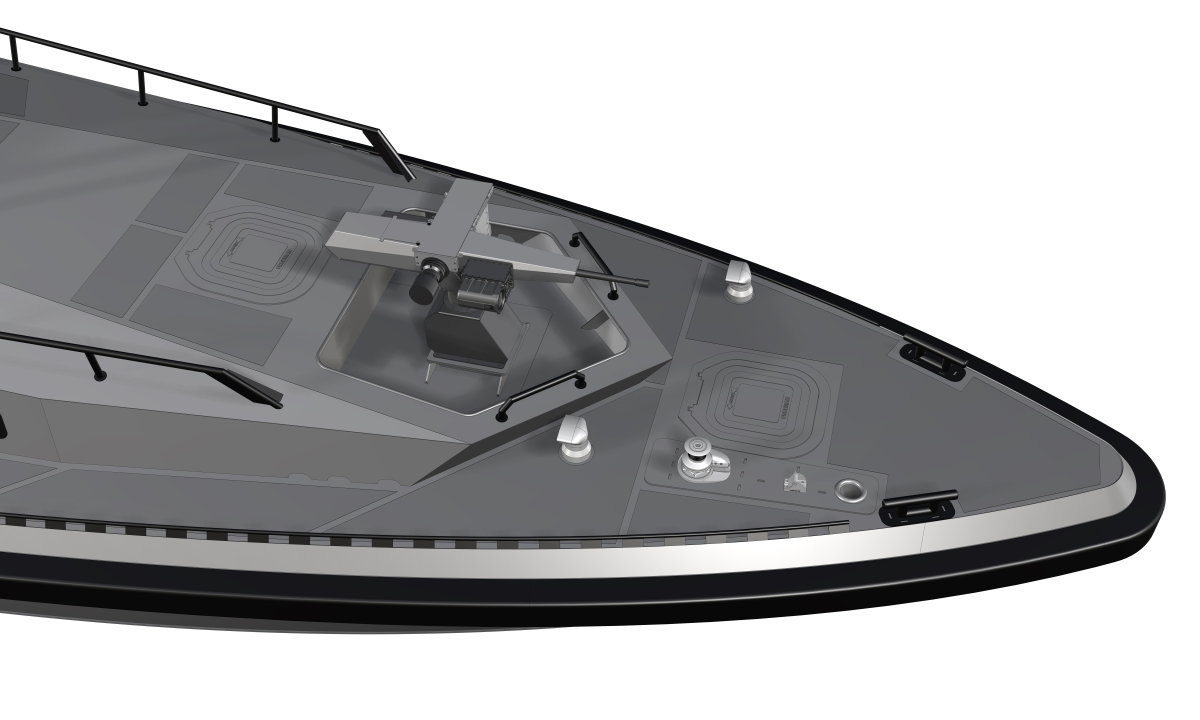

ARMAMENT (OPTIONAL)
Remote Weapon Station :
1x 2axis stb. 7.62/0.50/40mmGL
optional 30mm LW cannon
Manually Operated Gun mounts :
2x 0.50cal
NAUTICAL, SURVEILLANCE
& COMMUNICATION
EQUIPMENT
Thermal Surveillance Camera, Depth Sounder
Searchlight, Radar, CCTV, AIS, VHF, Chart Plotter
Compass, GPS, Intercom
